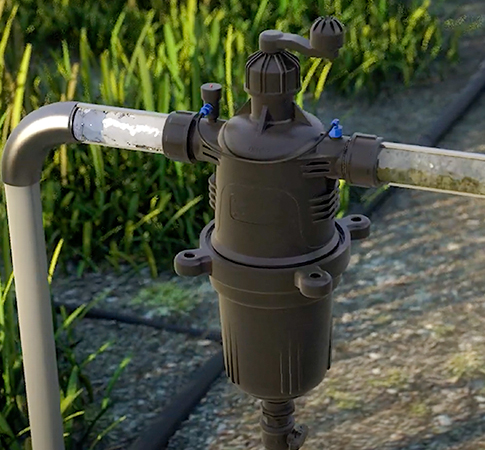

SUPRA-TS™ Series Semi-Automatic Screen Filter

DIG Introduces the innovative and and patented SUPRA-TS™ semi-automatic screen filter series, for easy effective filtration. The plastic filters are designed for long life and service in hard conditions, utilizing a user-friendly flushing cycle by opening the drain valve and rotating the handle, eliminating the need for manual filter cleaning and expensive fully automated systems.

Applications

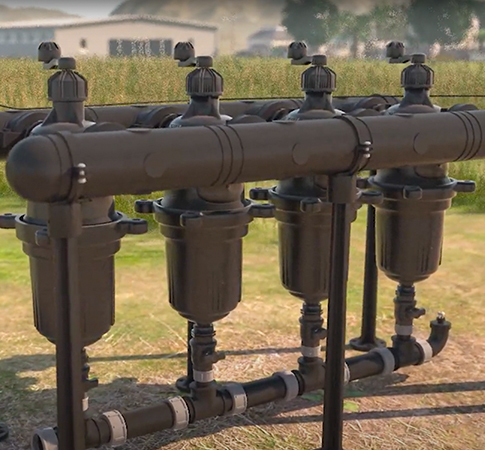

• Agriculture, landscape irrigation, industrial processes, and aquaculture applications for maintaining water quality, particularly protecting drip emitters, micro sprinklers, and other sensitive applications.

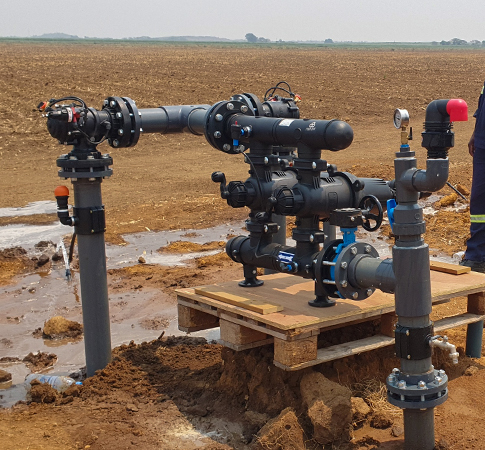

• Supports installation with low quality water sources.

Features

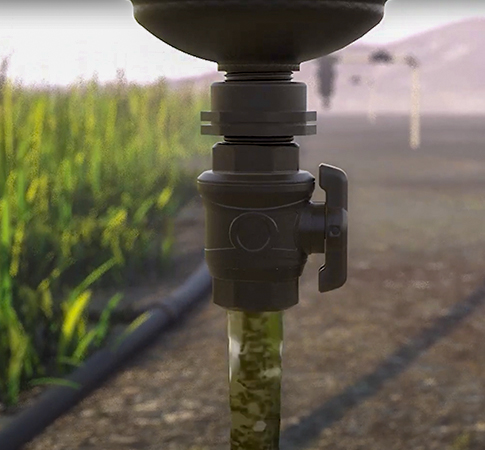

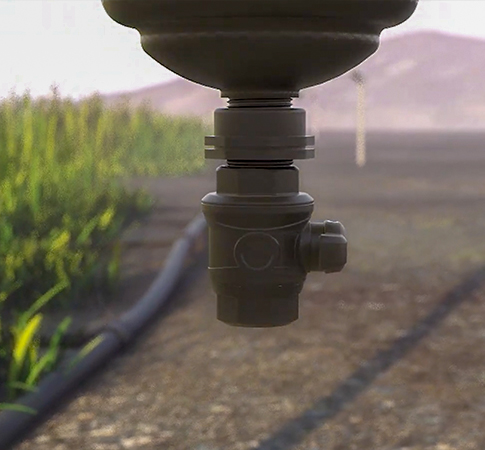

• Simple Operation: The cleaning process is quick and easy, requiring the opening of the flush valve at the filter bottom and a quarter turn of the overhead handle for 15–30 seconds.
• High Efficiency: Provides better protection by filtering smaller particles than semi-automatic screen filters of the same filtration grade.
• Small Footprint: Compact design fits a wide range of applications in various locations.
• Versatile Applications: Suitable for agriculture, landscape irrigation, and industrial use.
• Options: Clogging indicator allows for easy monitoring of filter head-loss conditions.
• Flow Rate Capability: Available in 2” and 3” sizes, with low friction loss and flow rates of up to 220 GPM (40 m³/h).
• Large Filtration Area: Achieves higher organic and inorganic contaminant holding capacity and lower flushing frequency.
• Construction: Made from polymeric materials with high resistance to corrosion and chemicals, and UV-protected for longer life.
