S-305DC 6-12 VDC Solenoid & Adapters

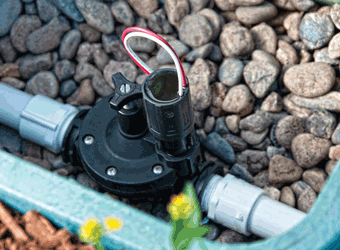

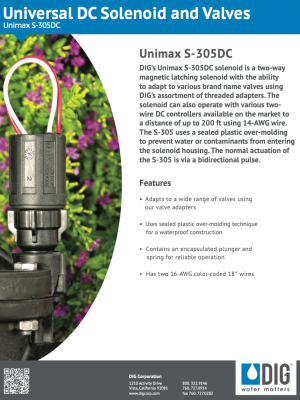

DIG’s S-305DC is an encapsulated, watertight, two-way magnetic latching solenoid that requires minimal power to operate. The S-305DC is used with DIG range of battery operated controllers, LEIT 2 ET system and others. With seven solenoid adapters available, the S-305DC can replace conventional solenoids on most valves, enabling DIG controllers to operate the majority of all brand name valves using DC power.
Solenoid Features

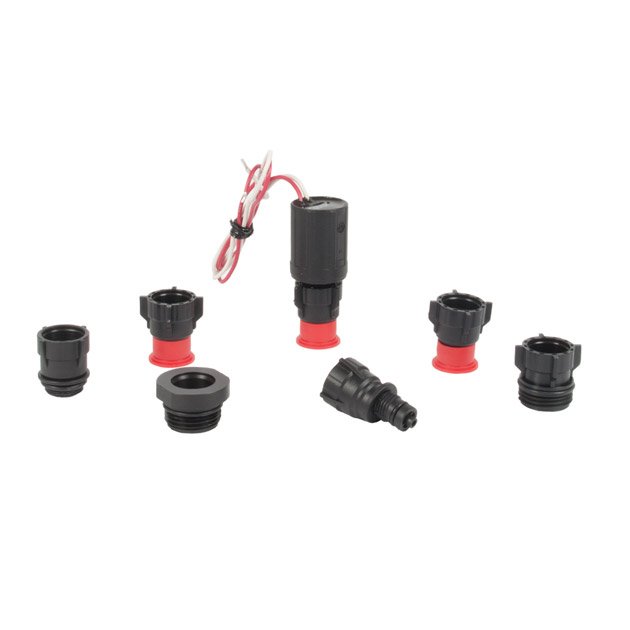

- Adaptable to a wide range of valves using one of our seven adapters
- Potted technique for sealed, waterproof construction
- Two 16 gauge, color-coded 18” wires
- Captured plunger and spring for reliable operation
- Made of durable plastic
Adapters Features
- For use in conjunction with the S-305DC and LEMA 1700S solenoids
- Easy to install
- Seven adapters are available to fit most brand name valves
- Made of durable plastic
How to Specify
| MODEL | DESCRIPTION |
|---|---|
| Use with 720A, 740A, 760A, and LEIT-2ET controllers | |
| S-305DC | 6 - 12 VDC Solenoid with 11/16" -12 UN thread |
| Valve Adapter for use with LEMA 1700S and S-305DC solenoids only | |
| 30-926 | RAIN BIRD series PEB and PESB (1 1/2 in. and 2 in.only) valves |
| 30-920 | DIG series 305, BERMAD series 200, HIT series 500, DOROT series 80, GRISWOLD series 2000, DW and BUCKNER series VB valves |
| 30-921 | RAIN BIRD DV, DVF, PGA, PEB (1 in. only), GB, EFB-CP, BPE, PESB (1 in. only) and ASVF valves |
| 30-922 | HUNTER series ASV, HPV, ICV, PGV, SRV, IBV and ASVF valves |
| 30-923 | WEATHERMATIC series 12000, 21000, 8200CR valves |
| 30-924 | IRRITROL series 100, 200B, 205, 217B, 700, 2400, 2500, 2600, and 2700, TORO series 220 and P220 valves, K-Rain Pro Series 200, models 7201, 7215, and 7202 (for 7215 & 7202, K-Rain solenoid adapter assembly must be removed) |
| 30-925 | SUPERIOR series 950, HUNTER HBV and TORO series 252 valves (1.5 in. and larger) |
Specifications
- Latching Solenoid: 6-12 VDC, two-way, normally closed
- Solenoid thread: 11/16"-12 UN
- Operating pressure: 10-150 PSI (.7-10.5 BAR)
- Coil Resistance: 4.7 +/- 0.3 Ohms
- Pulse Width: minimum 10 mSec
- Operation mode:
- Red + and white – to latch open
- Red – and white + to released and closed
- Lead wires: 18” (45 cm) UL-1015, AWG 16, 300V- red and white wires
- Weight: 4.2 oz (120 g)
- Diameter: 1.225” (3.1 cm)
- Overall Length: 2.5” (6.35 cm) without adapter
- Control orifice: .065 (1.7 mm)
- Temperature range: 32°F to 170°F (3°C to 77°C)
- Materials:
- Solenoid housing: glass-reinforced nylon
- Inside housing stainless steel parts: 430F stainless
- Plunger rubber cap: EPDM
- O-ring: Buna-N
Dimensions
- Diameter: 1.225" (3.1 cm)
- Overall length: 2.5" (6.35 cm)
Valve Adapters Retrofit Configuration
| Part # | Description |
|---|---|
| 30-920 | BERMAD series 200, HIT series 500, DOROT series 80,GRISWOLD series 2000, DW and BUCKNER series VB valves |
| 30-921 | RAIN BIRD DV, DVF, PGA, PEB (1 in. only), GB, EFB-CP, BPE, PESB (1 in. only) and ASVF valves |
| 30-922 | HUNTER series ASV, HPV, ICV, PGV, SRV, IBV and ASVF valves |
| 30-924 | IRRITROL series 100, 200B, 205, 217B, 700, 2400, 2500, 2600 and TORO series 220, P220 valves, K-rain Pro Series valves |
| 30-925 | SUPERIOR series 950, HUNTER HBV and TORO series 252 valves (1.5 in. and larger) |
| 30-926 | RAIN BIRD series PEB and PESB (1 1/2 in. and 2 in. only) valves |
