PVC Insert

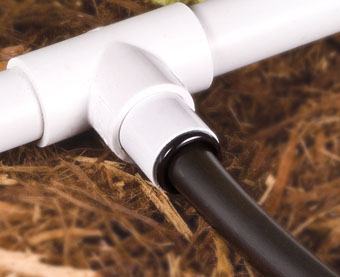

DIG’s 1/2″ Compression PVC compression inserts are available for .450″ OD (red), .630″ OD (green). .700″ OD to .704″ OD (black), .710″ OD (blue) and .930″ OD (black). Glue the insert into any 1/2″ or 3/4″ PVC slip coupling or tee to connect it to 1/2″ or 3/4″ drip tubing.
Features
- Fits polyethylene tubing with .450″ OD , .630″ OD, .700″ OD to .704″ OD, .710″ OD and .930″ OD
- Glues into the slip side of any 1/2″ or 3/4″ PVC fitting

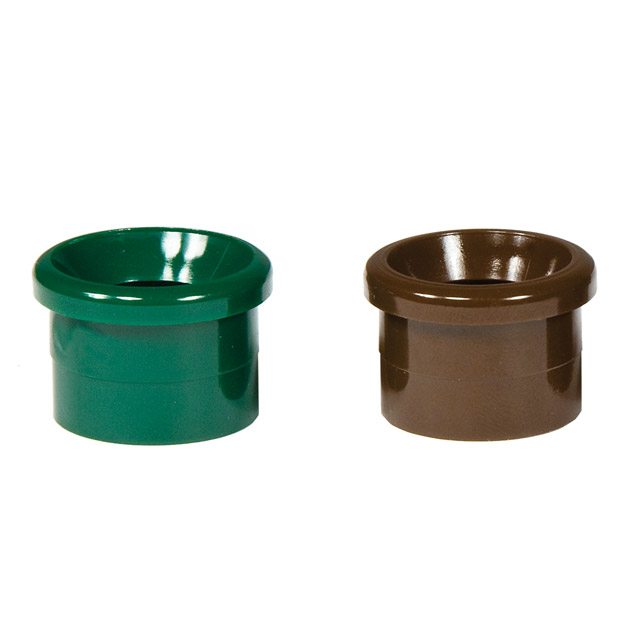

- Color-coded insert for easy identification
- Use with any PVC glue
- Easy to install
- Made with high-impact, UV-resistant plastic
How to Specify
| MODEL | DESCRIPTION | IMAGE |
|---|---|---|
| Inserts for 1/2 in. PVC | ||
| 15-025 | .450 OD | |
| 24-008 | .620 OD | |
| 15-067 | .670 OD | |
| 15-013 | .700 OD | |
| 15-019 | .710 OD | |
| Inserts for 3/4 in. PVC | ||
| 16-018 | .930 OD | |
Specifications
- Operating pressure: Up to 60 PSI
- Recommended operating pressure: up to 30 PSI
- Size: For .700" OD to .704" OD drip tubing and drip line
- Color: Black
- Materials: High-impact plastic
