Pop-Up Riser Assembly
Features

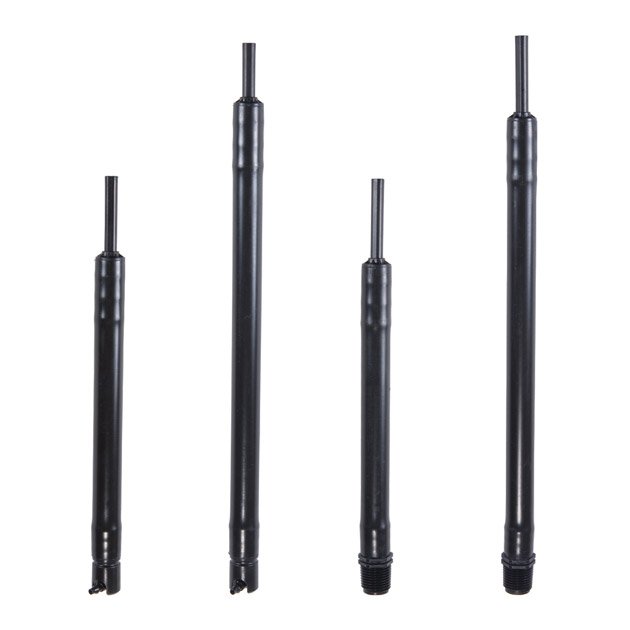

- Available in 8″ or 12″ with 1/2″ MNPT or with 1/4″ barb
- Unique design incorporates a pressure-activated, low-friction, upper-stem seal and a second stage piston seal to ensure positive sealing
- 1/4″ side outlet can be used with 1/4″ (.150″-.170″ ID) distribution tubing and installed on any polyethylene tubing
How to Specify
| MODEL | DESCRIPTION |
|---|---|
| 16-508 | 8 in. pop-up riser with 1/4 in. barb |
| 16-509 | 12 in. pop-up riser with 1/4 in. barb |
| 16-510 | 8 in. pop-up riser with 1/2 in. MNPT |
| 16-511 | 12 in. pop-up riser with 1/2 in. MNPT |
Specifications
- Operating pressure: 15-35 PSI (1-2.5 BAR)
- Filter requirement: 120 mesh
Dimensions
- 8" (20.3 cm) or when up 13" (33 cm)
- 12" (30.5 cm) or when up 21" (53.34 cm)
