Heavy Duty 2″ MPT Screen Filter

DIG’s heavy duty, high flow 2″ super filters with glass fiber reinforced bodies incorporate robust, high strength filter design with a tough, structural, easy to clean stainless steel screen element. The durably constructed 2” MPT filter has a large filtration area, ensuring high performance and long life, suitable for any irrigation application. The large filtration area offers nominal head loss and high flow rates for primary, secondary, or backup use in landscape agriculture, greenhouses, and nurseries. The 2” filter is available in two versions, inline or “T” angle, and accepts a wide range of interchangeable, color-coded screens or disc elements that feature resistance to corrosion, alkaline, acid and most chemicals used in irrigation.

Features

• Special locking grip rings design enables easy opening of the filters without the use of tools, even after months under operation.
• A wide range of filtration degrees for various applications

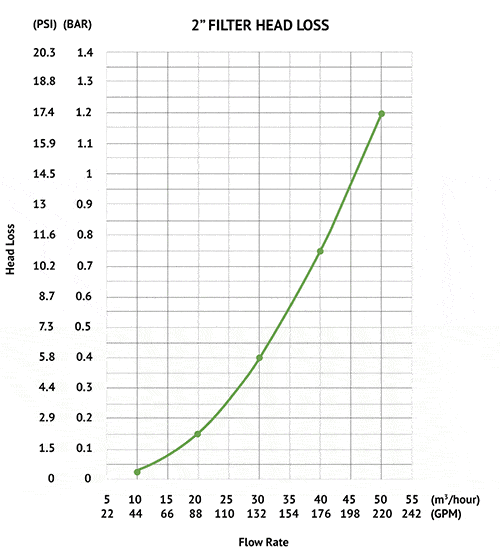

• Large filter area with low friction loss allows long intervals between cleaning
• Greater filtration capacity for effective protection of the irrigation system
• Can operate under pressure of up to 150 PSI
• All-purpose filter with a wide range of stainless-steel screens from 80 to 180 microns to suit a wide range of filtration requirements
• Designed to reduce operating costs and deliver high quality filtrate in a minimum space
• Made of superior strength material for excellent mechanical strength, and corrosion resistance for most common chemicals
• Easy maintenance – the screen can be extracted from the filter for cleaning
• Interchangeable screen elements
• Access point on the inlet and outlet side for pressure measurement test
• Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
