LEMA 1700S DC Solenoid Actuator & Adapters

LEMA 1700S DC Solenoid Actuator & Adapters

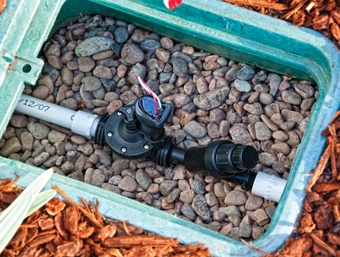

The LEMA 1700S solenoid actuator is an advanced replacement for the LEMA 1600HE, designed to operate seamlessly with DIGs, LEIT ambient light (solar) powered controllers. The LEMA 1700S is compatible with several controllers models included, LEIT® 4000, LEIT® X, LEIT® XRC and the LEITLINK® weather based smart controller system.  The LEMA 1700S can be easily installed on various brand name valves, using the appropriate DIG adapter. This flexibility allows for seamless integration into existing irrigation systems or new installations.

 Features:

  • Potted technique for sealed, waterproof construction
  • Allows connections of up to 6 sensors in conjunction with the new LEITLINK® weather based smart controller
  •  Power efficiency with electronic management system that requiring minimal power
  • High-efficiency encapsulated plunger and spring design for watertight operation
  • Extended range wire length up to 7500 feet using 12-gauge wire
  • Constructed of UV-resistant, high impact plastic material to withstand the most adverse condition

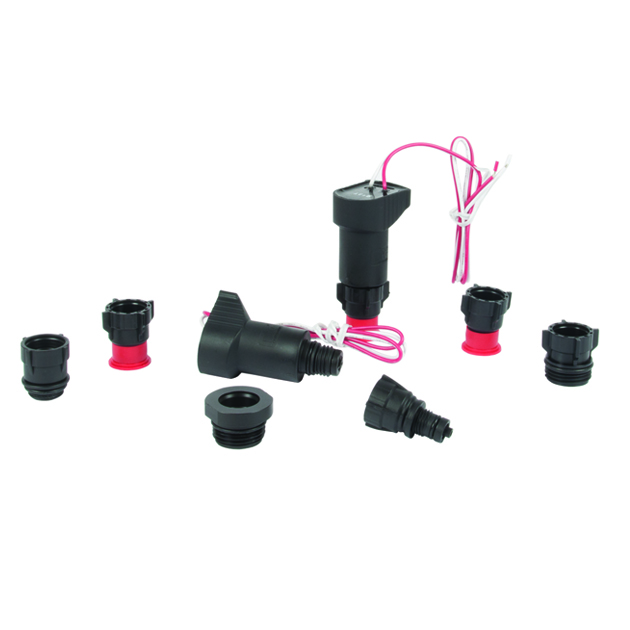

Adapters Features

  • Seven adapters are available to fit most brand name valves
  • For use in conjunction with the 1700S and S-305DC solenoids
  • Easy to install
  • Made of durable plastic
WHERE TO BUY

Share:

LEMA 1700S DC Solenoid Actuator & Adapters
How to Specify
MODEL DESCRIPTION
For use with LEIT 4000, LEIT X & LEIT XRC controllers only
LEMA 1700S Solenoid with internal bleed manual override
Valve Adapter for use with LEMA 1700S and S-305DC solenoids only
30-926 RAIN BIRD series PEB and PESB (1 1/2 in. and 2 in.only) valves
30-920 DIG series 305, BERMAD series 200, HIT series 500, DOROT series 80, GRISWOLD series 2000, DW and BUCKNER series VB valves
30-921 RAIN BIRD DV, DVF, PGA, PEB (1 in. only), GB, EFB-CP, BPE, PESB (1 in. only) and ASVF valves
30-922 HUNTER series ASV, HPV, ICV, PGV, SRV, IBV and ASVF valves
30-923 WEATHERMATIC series 12000, 21000, 8200CR valves
30-924 IRRITROL series 100, 200B, 205, 217B, 700, 2400, 2500, 2600, and 2700, TORO series 220 and P220 valves, K-Rain Pro Series 200, models 7201, 7215, and 7202 (for 7215 & 7202, K-Rain solenoid adapter assembly must be removed)
30-925 SUPERIOR series 950, HUNTER HBV and TORO series 252 valves (1.5 in. and larger)

Specifications

  • Solenoid actuator thread: 11/16"-12 UN
  • Pressure range: 10-150 PSI (.7-10.5 BAR)
  • Control orifice: .065 (1.7 mm)
  • Weight: 5.3 oz. (150 g)
  • Weight with adapter: 5.6 oz. (160 grams)
  • Dimension top: 1.375" (3.5 cm) L X 1.880" (4.8 cm) W
  • Dimension bottom: 1.180 (3.0 cm)
  • Overall length: 3.1 (7.9 cm)
  • Overall length with adapter: 3.45 (8.76 cm)
  • Lead wires: 18” (45 cm) UL 1015, AWG 16, 300V - red and white wires
  • Temperature range: 32°F to 150°F (3°C to 65°C)
  • Materials:
    • Solenoid housing: glass-reinforced nylon
    • Plunger & spacer: 430F stainless
    • Plunger rubber cap: EPDM
    • O-ring: Buna-N

Maximum wire run

Wire gauge (AWG) Wire gauge (mm) Wire distance (feet) Wire distance (m)
18 .88 mm2 2000 609
16 1.3 mm2 3500 1067
14 2 mm2 4500 1372
12 3.3 mm2 7500 2286
