LEIT-4000, X, XRC Electrical Accessories

LEIT-4000, X, XRC Electrical Accessories

The LEIT system has a range of accessories used with the LEIT 4000, LEIT X and LEIT XRC controllers

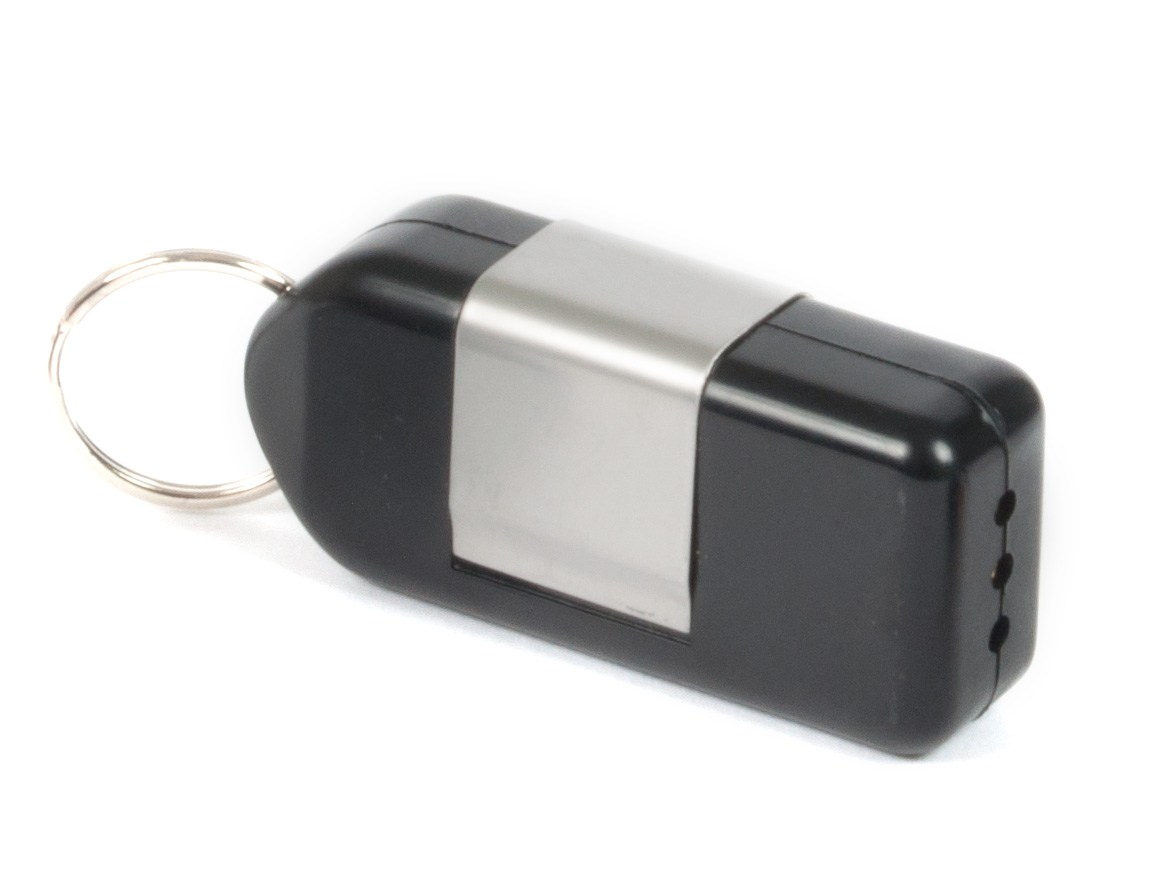

The LEIT Key allows the user to access the LEIT controllers. Powered by a 9-volt alkaline battery, the LEIT Key prevents unauthorized access to the controllers and function as a power interface, allowing the user to program, review or perform a manual run.

LEIT_Accessory2

LEIT Key Features

  • Powered by a 9-volt battery (not included)
  • Prevents unauthorized access to the controller’s schedule and programs

The SKIT switch-type weatherproof sensor adapter provides a quick and reliable way to connect compatible rain, freeze, moisture and other normally closed switch-type sensors either directly to the LEIT series of irrigation controllers or directly to one of our LEMA solenoid actuators.

LEIT_Accessory3

Switch-Type Sensor Adapter Features

  • Waterproof construction
  • Easy to install
  • Adapts to a wide range of sensors

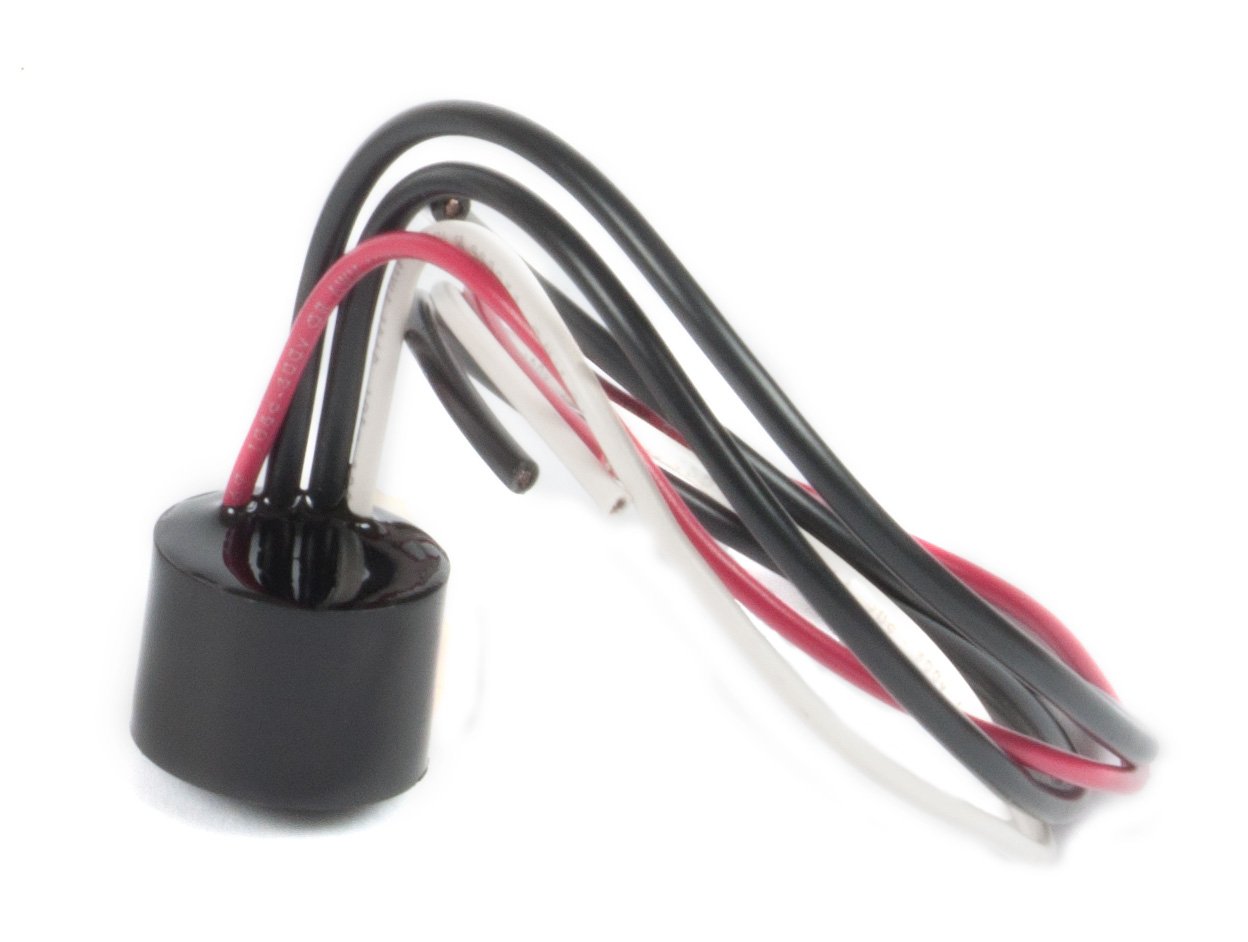

The RKIT waterproof relay interface provides a simple way to switch a relay of an AC or DC circuit allowing the LEIT series controllers to turn a pump on and off. To enable a LEIT controller to turn on a pump the RKIT must be connected to the station connector strip unit labeled MV/P. If any other AC or DC equipment is needed for relay switching, it can be connected to any other available station connector strip.

LEIT_Accessory3

Relay Interface Kit Features

  • Waterproof construction
  • Easy to install Choosing the Correct RKIT Model
WHERE TO BUY

Share:

LEIT-4000, X, XRC Electrical Accessories
How to Specify
MODEL DESCRIPTION
Relay Interface Kit
RKIT-8810S relay interface module for 24 AC/ DC-230V AC/DC (for 4000, X, & XRC)
LEIT Key
LEIT KEY Programming tool to enter controller
Switch Type Sensor Adapter
SKIT8821-4 Sensor adapter

LEIT System Switch Type Sensor Adapter Specifications

  • Compatible with normally closed switch type sensors only
  • Comes with 12" 12 gauge wire
  • Length: approx. 1.25" (3.1 cm)
  • Diameter: approx. 0.75" (1.9 cm)
  • Weight: approx. 2 oz (56 g) Sensor Recommendation
  • Recommended rain sensors are the Hunter Mini-Clik and the Rain Bird RSD
  • Recommended moisture sensors are the Irrometer WEM-B
  • Recommended freeze sensor is the Hunter Freeze Click

LEIT System Relay Interface Kit Specifications

  • High power V2 pulse input
  • Rated load 10A, 250 AC or 30V DC
  • Maximum voltage 380 VAC 125 VDC
  • Length: approx. 1.9" (4.7 cm)
  • Diameter: approx. 1.1" (2.7 cm)
  • Weight: approx. 8 oz (220 g)
