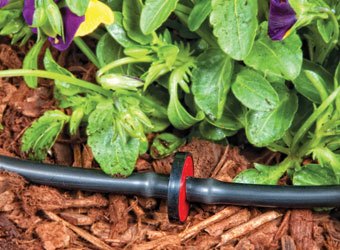

Inline Drip Emitters
The Inline Drip Emitters offer installation simplicity using 1/4” distribution tubing. They are available in two flow rates of .5 GPH and 1 GPH at 15 PSI, and can be used with 1/4” distribution tubing as the main line for pots, baskets, planter boxes, containers and for low-pressure gravity feed systems. Install the drip emitters as needed in any spacing with the 1/4″ distribution tubing as the main line.
Features
- Color-coded to easily identify flow rate
- Can be installed where desired along the 1/4″ distribution tubing
- Ideal for a loop-type layout
- Uniform flow rate at low pressure
- 1/4″ barbed inlet and outlet for installation into 1/4″ micro tubing
- Resistant to chemicals and fertilizers used in landscape applications
- Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions
How to Specify
| MODEL | DESCRIPTION | COLOR | IMAGE |
|---|---|---|---|
| 06-036 | 0.5 GPH In-line Drip Emitter | Red | |
| 06-037 | 1 GPH In-line Drip Emitter | Black |
Specifications
- Operating pressure range: 5 to 25 PSI
- Recommended operating pressure: 10 to 25 PSI
- Flow rates and color codes:
- .5 GPH color code – red
- 1 GPH color code – black
- Inlet side: 1/4" barb
- Outlet side: 1/4" barb
- Filter requirement: minimum of 150 mesh
- Material: polypropylene
Flow rate in gallon per hour @ 5 to 30 PSI
| Color | Red | Black |
|---|---|---|
| Nominal Flow rate | .5 GPH | 1 GPH |
| 5 PSI | .23 | .57 |
| 10 PSI | .34 | .81 |
| 15 PSI | .42 | .98 |
| 20 PSI | .5 | 1.15 |
| 25 PSI | .56 | 1.21 |
| 30 PSI | .62 | 1.41 |
