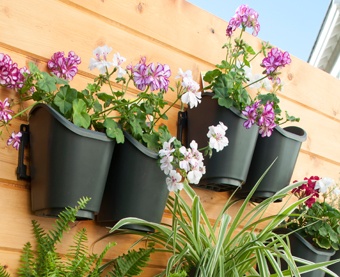

GLW-DE5 Drip expansion accessories pack
DIG’s Living Wall™ professional drip irrigation expansion accessories pack allows for an expansion of an existing Living Wall Vertical Garden with five individual pots. DIG Vertical Garden drip watering system for growing a variety of plants including perennials, herbs and succulents.The drip irrigation expansion pack uses pressure compensating drippers with a check valve to maximize efficient use of water for your pots.
Features
- Water supply is all out of sight except for the very small micro tubing that delivers water to a pressure compensating dripper positioned at each pot
- Water line from a Living Wall™ vertical garden kit can be connected into the water supply household faucet or garden hose
- All connections are drip irrigation standard and additional parts are available at local hardware stores or garden centers
- Uses DIG’s pressure compensating drippers with a built-in check valve that eliminates water draining when the system is shut off, saving additional water
How to Specify
| MODEL | DESCRIPTION |
|---|---|
| GLW-DE5 | DRIPPER, DRIP STAKE, TUBING PKG - 5 EACH |
Specifications
- Drip irrigation operating pressure: 10-50 PSI (.7 to 3.4 bar)
- Required opening pressure: 4.3 PSI (.3 bar)
- Closing pressure: 2.2 PSI (.15 bar)
- Flow rates and color codes:
- .3 GPH (1.1 L/H); color code brown inlet x gray outlet
- Dripper inlet size: 1/4" barb
- Dripper outlet side: 1/8" (3 mm) barb
- The Living Wall™ modular Vertical Garden is expandable up to 65 pots using 1/4" (6 mm) micro tubing as the main line. If larger, the main line needs to be 1/2" (16 or 17 mm).
Drip accessories pack part list
| model | qty | description |
|---|---|---|
| 25-002 | 5 | 1/4" (6 mm) tees |
| PCA-003-CV | 5 | .3 GPH (1 L/H) PC-CV drippers |
| 50-187-02 | 5 | 2' (60 cm) of 1/8" (3 mm) micro tubing |
| 16-017 | 5 | Stakes with 1/8" (3 mm) barb |
| 16-006 | 5 | 1/4" (6 mm) "C" clamps |
Videos
-
DIG's Living Wall™ Modular Vertical Garden Kit Installation
