Excel™ PCD 17 mm Dripline

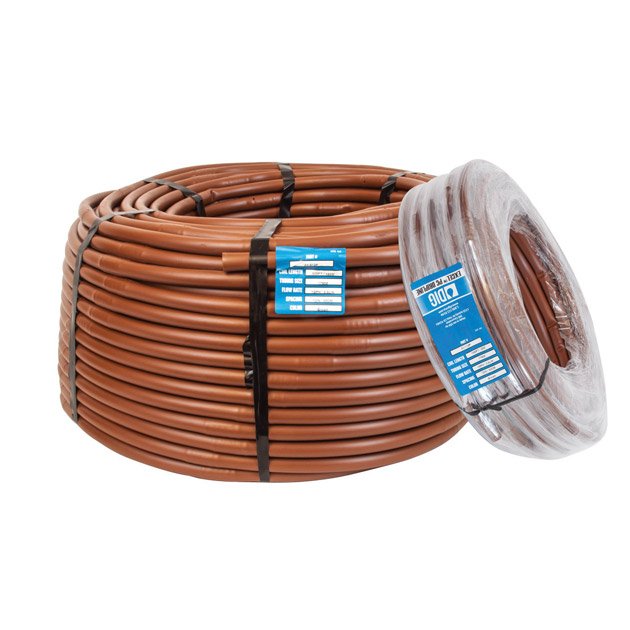

DIG’s Excel™ (PCD) Pressure Compensating, Dual Outlet Dripline is reliable, durable and precise, with all the features you look for in a pressure compensating dripline. The cylindrical drip emitters are designed with floating diaphragms to regulate and maintain a consistent flow rate at variable inlet pressures between 12 to 50 PSI. Unlike other dripline with only a single outlet, the Excel™ (PCD), Pressure Compensating, Dual Outlet Dripline has two outlets per emitter. If one outlet becomes blocked, a second outlet on the opposing side of the dripline provides redundancy to the dripline performance. For commercial or residential landscaping, Excel™ (PCD) Pressure Compensating, Dual Outlet Dripline excellent performance at a range of operating pressures presents many advantages in site preservation and system efficiency, supporting trouble-free operation and long life. The Excel™ (PCD) Pressure Compensating, Dual Outlet Dripline is ideal for installation in oddly or narrowly shaped areas, parking lots, high-traffic areas, green walls, green roofs, windy sites and on difficult terrain such as on slopes and other challenging areas.
Features
- Dual outlet configuration; if one outlet becomes blocked, a second outlet on the opposing side of each drip emitter along the line provides redundancy to the drip emitter performance
- Can be installed above grade and covered with mulch
- Flow-regulated, self-flushing in-line drip emitters deliver equal flow at a wide range of operating pressures
- Two flow rates to provide maximum flexibility in a variety of applications
- Flow uniformity regardless of operating pressure and variation along the line
- Drip emitter and diaphragm are self-contained units that are molded into the interior wall of the tubing
- Turbulent flow through a large labyrinth water passage helps reduce clogging
- Emitters are made of three individual sections including a cylindrical plastic housing with a labyrinth water passage, a plastic receptacle and a floating silicon diaphragm
- Resistant to chemicals and fertilizers commonly used in landscaping
- Flexible tubing for easy installation
- Dripline is marked with flow rate, size and date for easy identification
- Use with DIG’s 17 mm barb fittings, .670″ OD compression fittings and universal Nut Lock™ fittings
How to Specify
| MODEL | DESCRIPTION |
|---|---|
| 17 MM PC dripline : 670 OD | |
| A5-1XXP | 100 ft. 0.58 GPH |
| A1-1XXP | 100 ft. 0.95 GPH |
| A5-5XXP | 500 ft. 0.58 GPH |
| A1-5XXP | 500 ft. 0.95 GPH |
| A5-XXP | 1,000 ft. 0.58 GPH Brown |
| A1-XXP | 1.000 ft. 0.95 GPH Brown |
Specifications
- Flow rates:
- .58 GPH (2.2 L/H) color code - yellow
- .95 GPH (3.6 L/H) color code - white
- Operating pressure: 12-50 PSI (0.8-3.5 BAR)
- Color code: black or brown
- Materials: Low-density polyethylene resin
- Sizes:
- .570" ID x .670" OD (14.5 mm ID x 17 mm OD)
- Spacing: 12”, 18”, 24”, 30 and 36” (30 cm, 46 cm, 61 cm, 76 cm and 91 cm)
- Lengths: 100’, 250’, 500’ and 1000’ coils
- (30 m, 76 m, 152 m and 305 m)
- Minimum bending radius: 1’ (.3 m)
- Filter requirement: minimum of 150 mesh
Flow rate per 100' (30 M) (Flow rate 0.58 GPH) (2.2 L/H)
| Dripper Spacing | Flow (GPM) | Flow (L/M) | Flow (GPH) | Flow (L/H) |
|---|---|---|---|---|
| 12" (30 cm) | 0.97 | 3.7 | 58.0 | 220 |
| 18" (46 cm) | 0.64 | 2.4 | 39.0 | 146 |
| 24" (61 cm) | 0.48 | 1.8 | 29.0 | 110 |
| 30" (76 cm) | 0.39 | 1.5 | 23.2 | 88 |
Flow rate per 100' (30 M) (Flow rate .95 GPH) (3.6 L/H)
| Dripper Spacing | Flow (GPM) | Flow (L/M) | Flow (GPH) | Flow (L/H) |
|---|---|---|---|---|
| 12" (30 cm) | 1.58 | 6.0 | 95.0 | 360 |
| 18" (46 cm) | 1.06 | 4.0 | 63.3 | 240 |
| 24" (61 cm) | 0.79 | 3.0 | 48.0 | 180 |
| 30" (76 cm) | 0.63 | 2.4 | 38.0 | 144 |
Maximum single lateral length Flow rate .58 GPH (2.2 L/H)
| Dripper Spacing | 15 PSI (1.0 BAR) | 25 PSI (1.7 BAR) | 35 PSI (2.4 BAR) | 45 PSI (3.2 BAR) |
|---|---|---|---|---|
| 12" (30 m) | 218' (66 m) | 320' (98 m) | 376' (115 m) | 465' (142 m) |
| 18" (46 m) | 281' (86 m) | 446' (136 m) | 545' (166 m) | 624' (190 m) |
| 24" (61 m) | 376' (115 m) | 587' (179 m) | 706' (215 m) | 792' (241 m) |
Maximum single lateral length Flow rate .95 GPH (3.6 L/H)
| Dripper Spacing | 15 PSI (1.0 BAR) | 25 PSI (1.7 BAR) | 35 PSI (2.4 BAR) | 45 PSI (3.2 BAR) |
|---|---|---|---|---|
| 12" (30 m) | 172' (52 m) | 231' (70 m) | 297' (90 m) | 330' (101 m) |
| 18" (46 m) | 221' (67 m) | 347' (105 m) | 409' (124 m) | 479' (145 m) |
| 24" (61 m) | 300' (91 m) | 419' (127 m) | 512' (155 m) | 561' (170 m) |
