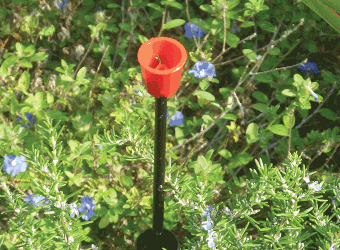

Drip system pop-up indicators
Features
- Available in four configurations
- Large red color indicator for visibility
- Unique design insures reliable operation
- Can be installed with Excel™ dripline, poly tubing, PVC or used with any drip irrigation system
- Ideal for subsurface systems and densely planted sites
How to Specify
| MODEL | DESCRIPTION | COLOR |
|---|---|---|
| Pop-Up Indicator | ||
| DSPI-08 | 8 in. with 1/2 in. MPT | |
| DSPI-08B | 8 in. with 24 in. micro tubing and barb | |
| DSPI-12 | 12 in. with 1/2 in. MPT | |
| DSPI-12B | 12 in. with 24 in. micro tubing and barb | |
Specifications
- Operating pressure: 15-35 PSI (1-2.4 BAR)
- Operating pressure: 30 PSI (2.1 BAR)
- Pop-up indicator height:
- 8" (20.3 cm) retracted to 13" (33 cm) extended
- 12" (30.3 cm) retracted to 21" (53.34 cm) extended
