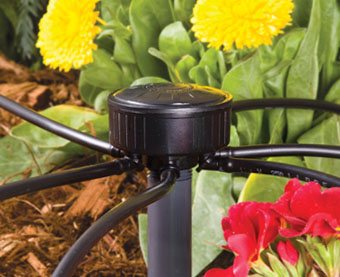

6-Outlet Drip Irrigation Manifold
Features
- Available in two configurations and four flow rates
- Large water passages with rolling diaphragm allow debris to pass through without clogging
- Individual flow-regulated devices for each outlet
- Rugged materials to withstand adverse conditions
- Install above grade or place below grade in a 6” emitter box
- Available with barbs or barbed elbow outlets to hold 1/4” distribution tubing
- Color-coded body for easy identification
How to Specify
| MODEL | DESCRIPTION | COLOR |
|---|---|---|
| Six Outlet PC Drip manifolds With side outlet | ||
| 06-504 | 4.5 GPH per outlet | Black |
| 06-506 | 5.5 GPH per outlet | Green |
| 06-508 | 8.2 GPH per outlet | Blue |
| 06-510 | 9.7 GPH per outlet | Brown |
| Six Outlet PC Drip manifolds With straight outlet | ||
| 06-604 | 4.5 GPH per outlet | Black |
| 06-606 | 5.5 GPH per outlet | Green |
| 06-608 | 8.2 GPH per outlet | Blue |
| 06-610 | 9.7 GPH per outlet | Brown |
Specifications
- Flow rates: 4.5, 5.5, 8.2, and 9.7 GPH (17, 20.8, 31 and 36.8 L/H)
- Operating pressure: 15-50 PSI (1-3.5 BAR)
- Temperature range: up to 122°F (50°C)
- Inlet size: 1/2” FNPT
- Outlet size: 1/4” barb or barbed elbow
- Use with 1/4” (.150"-.160” ID) distribution tubing
- Filter requirement: min. of 80 mesh
- Materials:
- Body, covers and flow regulating device: high-impact plastic
- Diaphragms: silicon
- Barbed outlets: acetal
Dimensions
- 2.25” W x 1.5” H (57 mm W x 38 mm H)
