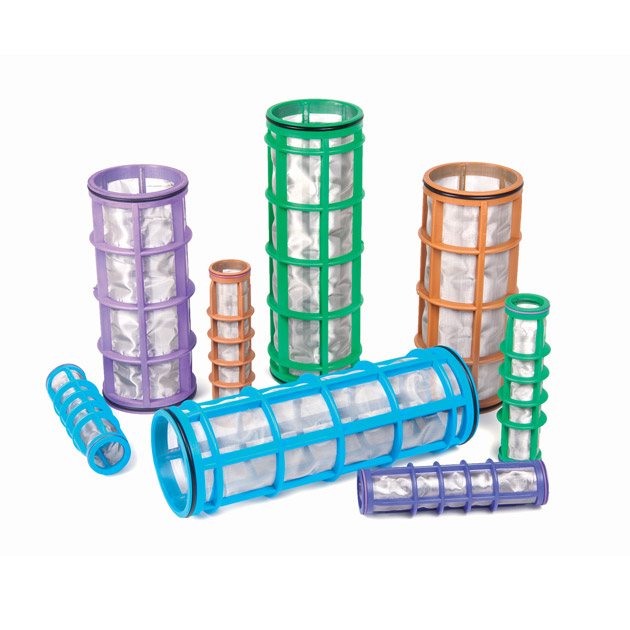

3/4″ – 2″ Polyester & Stainless Steel Filter Screen Elements
DIG replacement colored coded screen elements for DIG filters are made from polyester or stainless steel and are available in 40, 80, 120, 155 or 200 mesh. The screen elements filtration surface areas support a low-pressure loss, allowing longer intervals between cleanings and for better protection of the irrigation system.
Features
- Screens can retain large amounts of sediment that accumulate on the screens’ inside surface
- Screens can be easily removed for maintenance
- Color-coded replacement screens for easy identification
How to Specify
| MODEL | DESCRIPTION | COLOR |
|---|---|---|
| 3/4 in. & 1 in. filter screen elements | ||
| 17-401 | 40 mesh polyester screen | Navy blue |
| 17-402 | 80 mesh polyester screen | Blue |
| 17-403 | 120 mesh polyester screen | Brown |
| 17-404 | 155 mesh polyester screen | Green |
| 17-405 | 200 mesh polyester screen | Burgundy |
| 17-412 | 80 mesh stainless steel screen | Blue |
| 17-413 | 120 mesh stainless steel screen | Brown |
| 17-414 | 155 mesh stainless steel screen | Green |
| 17-415 | 200 mesh stainless steel screen | Burgundy |
| 1 1/2 in. & 2 in. filter screen elements | ||
| 17-080L | 80 mesh SS : 1 1/2 in. long | Blue |
| 17-120L | 120 mesh SS : 1 1/2 in. long | Brown |
| 17-155L | 155 mesh SS : 1 1/2 in. long | Green |
| 17-200L | 200 mesh SS : 1 1/2 in. long | Burgundy |
| 17-085 | 80 mesh SS : 2 in. long | Blue |
| 17-125 | 120 mesh SS : 2 in. long | Brown |
| 17-160 | 155 mesh SS : 2 in. long | Green |
| 17-205 | 200 mesh SS : 2 in. long | Burgundy |
Chemical Resistance
- Excellent resistance to most mineral acids
- Limited resistance to alkali depending on concentration and temperature
- Excellent resistance to low concentration of lye
- Screen Materials
- Cylinder: polyester
- Screen: polyester or stainless steel
- O-ring: EPDM
