180° and the 360° Adjustable Drip Emitters

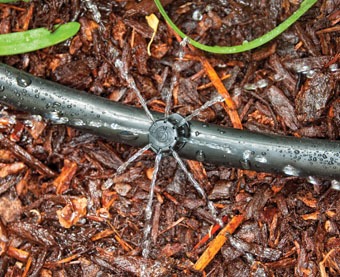

DIG’s 180° and 360° adjustable drip emitters are available with a barb or spike and have a flow dial enabling the flow to be adjustable between 0 to 14.1 GPH at 25 PSI. The drippers are designed to emit a very low-flow, gentle stream pattern with a diameter range of 0 to 2.3’ at 25 PSI.
Features
- Click adjustment from flow off to full flow – perfect as the plant grows and its need for water changes
- Available in 360° and 180° patterns for individual plants or closely spaced plantings
- Recommended for planter boxes, large pots, groundcovers and shrubs
- Rotation of the cap allows adjustment of flow and diameter of throw down to a complete shut-off via a ratchet mechanism on the cap and a notch on the base
- Efficient and reliable method for applying water
- Trouble-free operation with no moving parts
- Removable cap for easy cleaning
- Constructed of UV-resistant, durable plastic material
How to Specify
| MODEL | DESCRIPTION | IMAGE |
|---|---|---|
| Adjustable Drip Emitters | ||
| 06-011 | 0-10 GPH 360° on barb | |
| 06-012 | 0-10 GPH 360° on stake | |
| 06-002 | 0-10 GPH 180° on barb | |
| 06-003 | 0-10 GPH 180° on stake | |

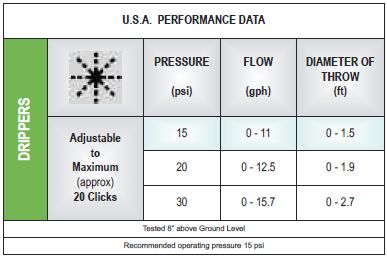

Specifications
- 180° or 360° coverage
- Flow rates and color:

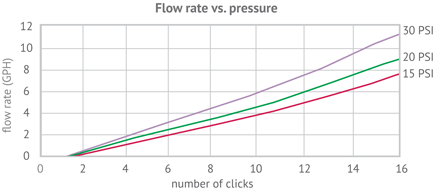

- Adjustable from 0-14.1 GPH (0-53 L/H) @ 25 PSI
- Color code: black
- Recommended Operating pressure: 15-25 PSI (1-1.72 BAR)
- Maximum operating pressure: up to 30 PSI
- Wetting area: 0 to 2.3’ at 15 to 25 PSI

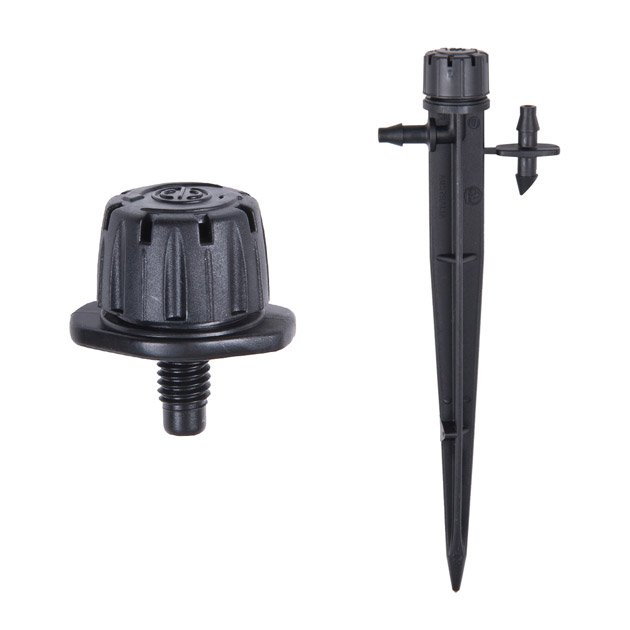

- Available on 1/4" barb or 5" (12.7 cm) stake with barb
- Filter requirement: minimum of 120 mesh
Maximum number of adjustable drip emitters on 1/2" drip tubing with .600" ID
| Spacing | 2' | 3' | 4' | 5' | 6' |
|---|---|---|---|---|---|
| Flow rate @ 30 PSI | 15.7 | 15.7 | 15.7 | 15.7 | 15.7 |
| Maximum length | 40' | 51 | 65' | 70' | 78' |
| Flow rate in GPM | 5.23 | 4.45 | 4.19 | 3.66 | 3.40 |
| Flow rate in GPH | 314 | 266.9 | 251.2 | 219.8 | 204.1 |
| # of adjustable stream drip emitters | 20 | 17 | 16 | 14 | 13 |
| Head loss in PSI | 5.0 | 4.7 | 5.3 | 4.5 | 4.4 |
| Velocity (f/s) | 5.95 | 5.05 | 4.76 | 4.16 | 3.86 |
| 48" distribution tubing (poly) head loss in PSI | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Total head loss at the drip emitter | 5.5 | 5.2 | 5.8 | 5.0 | 4.9 |
