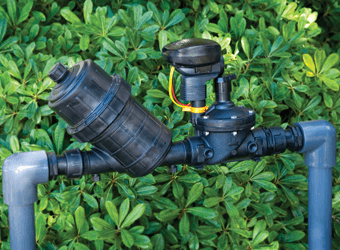

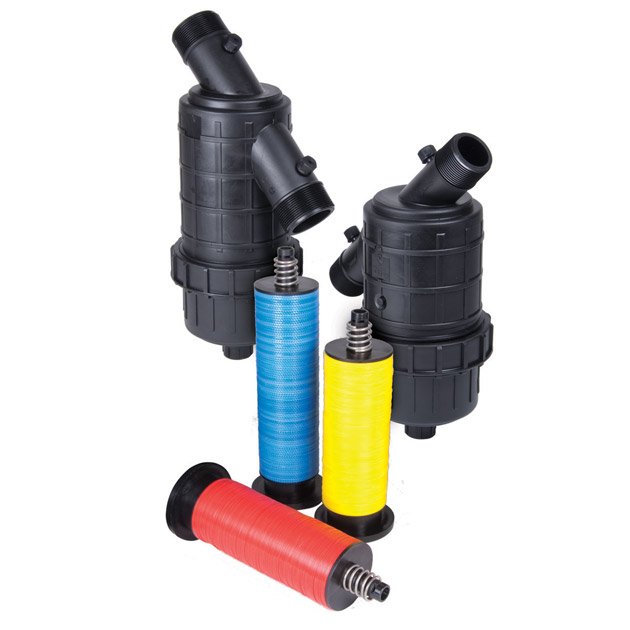

1 1/2″ & 2″ MPT Plastic Filter with Disc Elements

Sediments accumulate on the outer face of the stacked discs, allowing clean water to flow through the stacked discs and out the middle of the filter
Disc elements provide in-depth filtration to retain organic matter
During operation the disc elements are tightly pressed together by pressure and the spring, providing high filtration efficiency
Discs have excellent resistance to most common chemicals
Easy maintenance; the discs can be extracted for cleaning
Interchangeable color-coded discs and stainless-steel screen elements provide a wide range of filtration degrees and options
Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

WHERE TO BUY

MODEL	DESCRIPTION
Plastic Filters with Disc Elements
P75-XXXDLI	1 1/2 in. (long) MNPT disc filter
P80-XXXD	2 in. MNPT disc filter
1 1/2 in. disc set
17-040D	40 mesh : 1 1/2 in. disc set
17-041D	80 mesh : 1 1/2 in. disc set
17-042D	120 mesh : 1 1/2 in. disc set
17-043D	150 mesh : 1 1/2 in. disc set
2 in. disc set
17-044D	40 mesh : 2 in. disc set
17-045D	80 mesh : 2 in. disc set
17-046D	120 mesh : 2 in. disc set
17-047D	150 mesh : 2 in. disc set

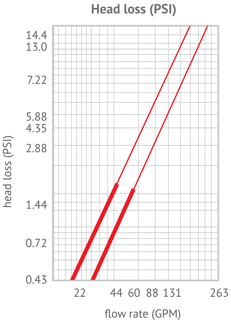

Flow rates: 1 1/2" & 2": up to 60 GPM (13.6 m3/h)
Operating pressure: up to 120 PSI (8.4 BAR)
Temperature range: up to 130°F (54°C)
Inlet and outlet size: 1 1/2", 2" MNPT
Filter and Disc Materials
- Housing and discs: polypropylene
O-ring: EPDM
- Pressure testing ports: polypropylene
- Pressure testing seals: natural rubber BR
- Disc cylinder assembly: polypropylene / PBT
- Spring: stainless steel 304
