PB550 Small Pet Cooling Kit
DIG’s PB550 Ocean Breeze™ Small Evaporative Mist Animal Cooling Kit is ideal for use through the hot summer months to cool stables, corrals, barns, hog houses and chicken coops, providing a cooler environment for the animals. It can reduce the air temperature by up to 20°; the hotter and drier the air, the more noticeable the cooling effect. The kit contains 50’ of 1/4″ beige poly pipe, seven .8-GPH foggers and all of the other components needed to install the system.
Features
- Significantly reduces air temperature
- Water evaporates instantly; no muddy accumulation
- Provides micro-sized droplets to maximize the cooling and humidifying effect
- Enough line for a 50’ run to cover 50 sq ft.
- Contains seven .8-GPH foggers with barbs
- Three-part foggers are easy to open and clean
- Easily expandable up to 100 sq ft using additional misting foggers and misting-line pipe
- Made of nontoxic, UV-resistant, durable plastic material to protect the system from thermal degradation
How to Order
| MODEL | DESCRIPTION |
|---|---|
| PB550 | Small Pet Cooling Kit |
Specifications:
- Operating pressure: 40 to 80 PSI
- Fogger flow rate: .8 GPH @ 50 PSI
- Recommended spacing for best cooling effect: every 3' to 4'
- Recommended installation height: 8' to 12' above ground
- Covers up to 50 sq ft; expandable up to 100 sq ft
- Misting-line pipe length: 50'
- Misting-line pipe diameter: 1/4"
- Material:
- Fogger housing and nozzles: high-impact plastic
- O-ring: EPDM
- Misting pipe: PVC in beige color

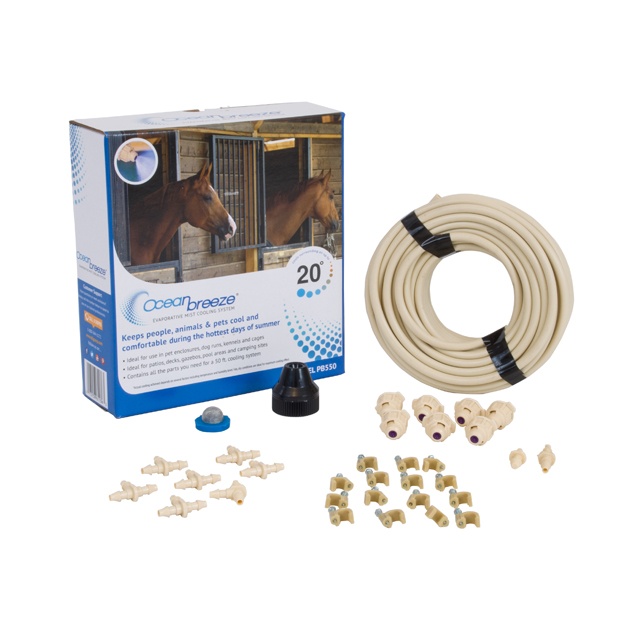

Box Contents
| qty | description |
|---|---|
| 7 | 0.8 GPH misting nozzles |
| 1 | 50' of 1/4" misting line |
| 1 | faucet connector |
| 1 | screen |
| 15 | "C" clamps |
| 1 | line connector |
| 7 | line tees |
| 1 | line end |
| 1 | Installation instructions |
About

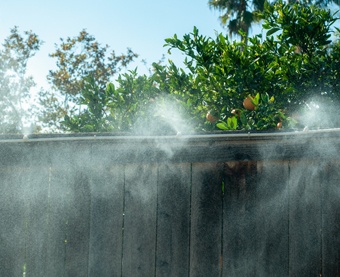

The PB550 Ocean Breeze™ Small Evaporative Mist Animal Cooling Kit operates at the pressure normally found in homes, without the need for expensive pumps, creating micro-sized water droplets to maximize the cooling effect. By increasing the moisture content of the surrounding air, the kit can dramatically reduce the air temperature.
Start the kit from a faucet or garden hose
To create your own microclimate, follow these step-by-step instructions, then sit back and enjoy the cooling comfort of an Ocean Breeze.
- Place the screen inside the 3/4″ swivel faucet connector and attach it to the water source. If water quality is a concern, we highly recommend using a fine mesh 3/4″ filter (model D57A), not included with this kit.
- Insert the end of the 1/4″ misting line pipe into the faucet connector for about 1/2″ to 5/8″ by pushing and wiggling the pipe inward and applying some force.
- Lay out the misting-line pipe at a height of 8′ to 12′ above the area and use the “C” clamps included in the kit every 2′ to 4′, securing the misting-line pipe to the structure.
- At the location where the first fogger is to be placed, cut the misting-line pipe and add a tee.
- To the tee, add a small piece (2″ to 3″) of 1/4” misting line. Continue using the same method, leaving the end of the misting line open.
- Turn the water on and flush the line. Then, turn the water off and insert the foggers into the pieces of 1/4” misting line.
- Use the plug to close the end of the misting-line pipe.
- Turn the water on again and test the system, making sure that each fogger is operating correctly.
- To automate this kit, install a misting timer that can operate for a limited time through the day and includes a short cycle.
- The line connector will allow you to expand the system.
