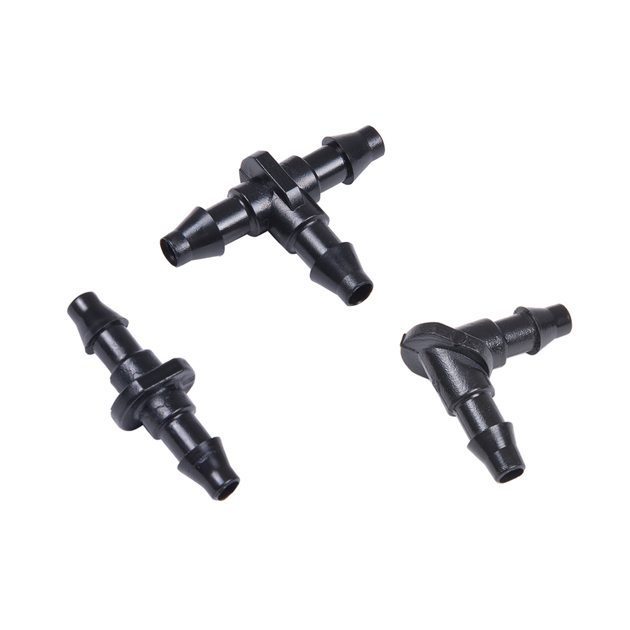

1/4″ Barbed Fittings
DIG’s 1/4″ Barbed Drip Fittings are designed for use with all brands of 1/4″ micro tubing, 1/4″ dripline, and 1/4″ soaker hose (with an internal diameter of .140 to .170 inches). These fittings create a tight-fit connection by being pushed into the tubing. They can be used to create two-way or three-way layouts with different tubing types and to attach micro tubing to 1/2″ or 3/4″ drip tubing. Made from high-impact plastic, these fittings feature the largest inside diameter in the industry, resulting in higher flow rates and lower head loss.
Features
- Sharp-barb design for secure and tight-fit installation without glue or clamps
- Fits all brands of 1/4″ micro tubing , 1/4″ dripline and 1/4″ soaker hose with .140 ID to .170 ID
- One-piece construction
- Made of high-impact, high-strength, UV-resistant plastic for durability and long life
- Large inside diameter for maximum flow
How to Order
| MODEL | DESCRIPTION | IMAGE |
|---|---|---|
| H84B | 1/4 in. Barbed Elbow, (PACK OF 10) Aids in turning 1/4" micro tubing around sharp corners |
|
| D5010 | Self piercing 1/4 in. Insert Connector , (pack of 5) |
|
| 1/4 in. Barbed Coupling | ||
| H80A | 1/4 in. barbed connector, (pack of 10) |
|
| H80B | 1/4 in. barbed connector, (pack of 50) | |

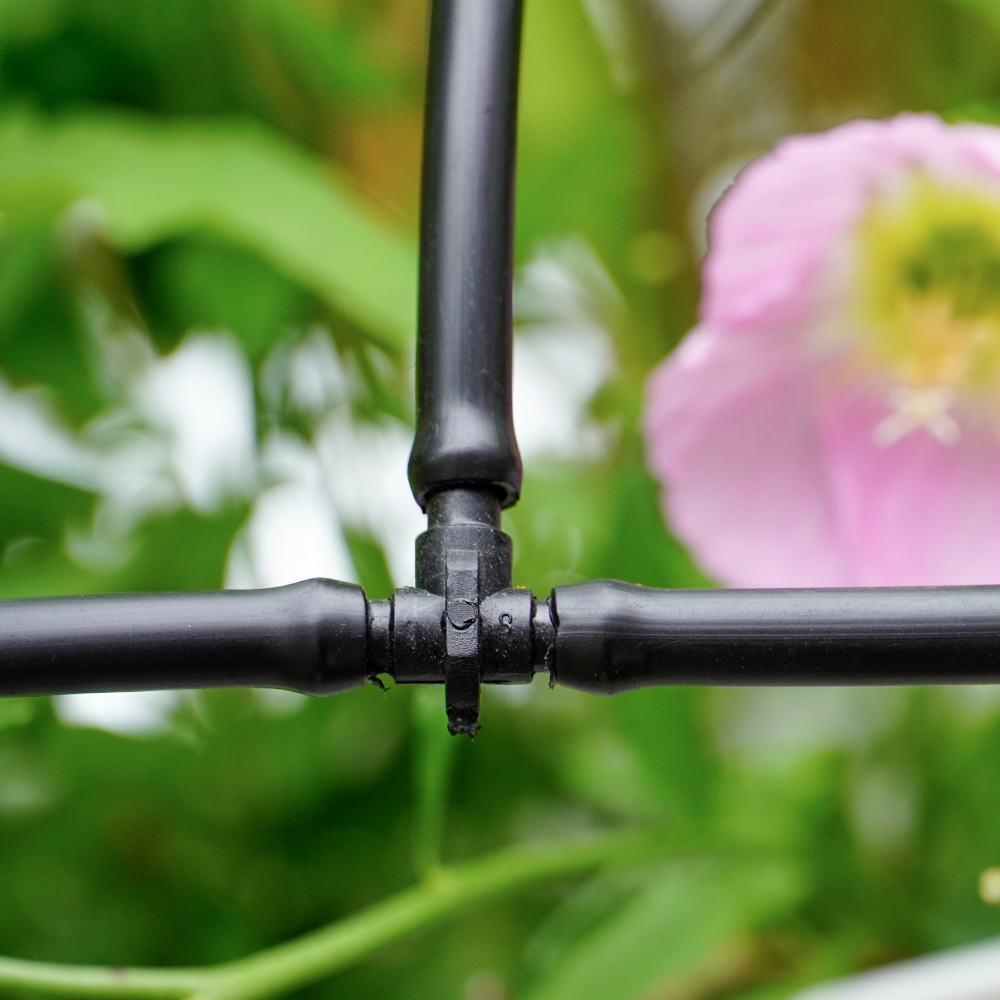

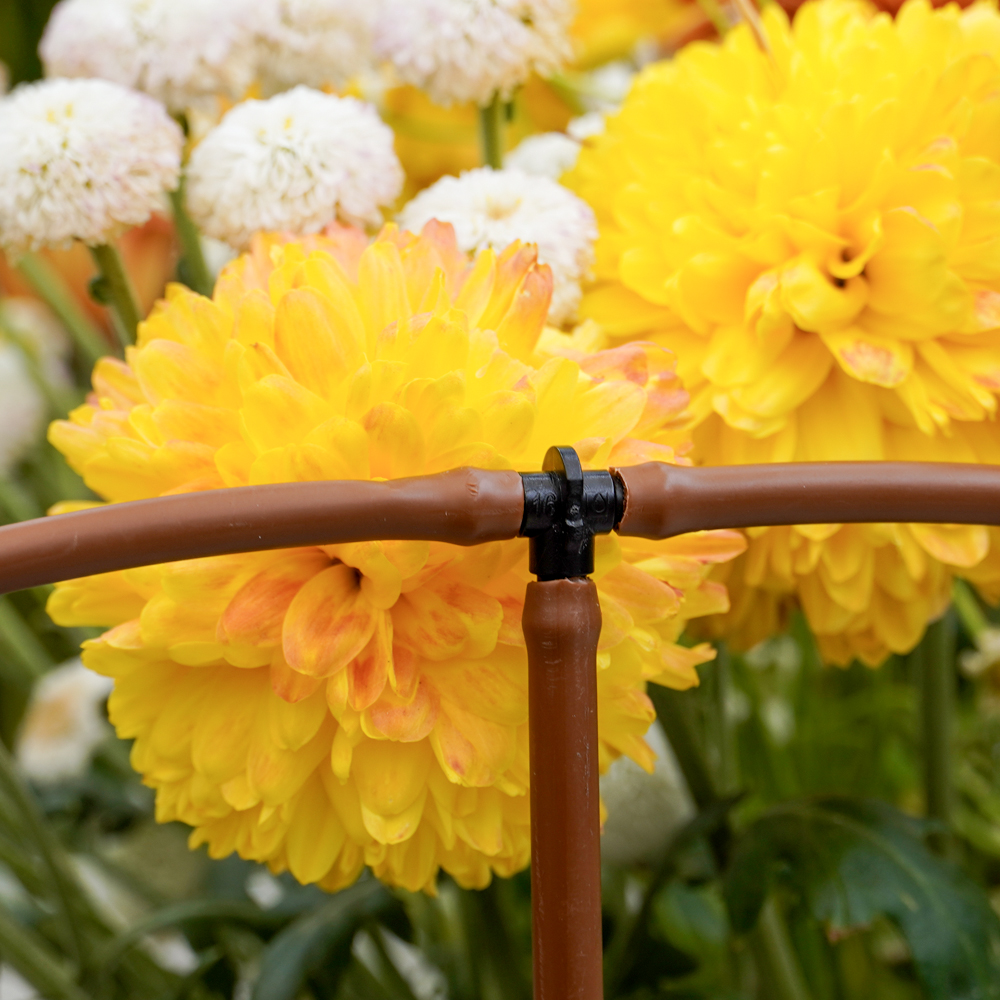

| 1/4 in. Barbed Tee | ||
| H82A | 1/4 in. Barbed Tee, (pack of 10) |
|
| H82B | 1/4 in. Barbed Tee, (pack of 50) | |
Specifications
- Operating pressure: up to 30 PSI
- Color: black
- Use with 1/4” micro tubing, 1/4" drip line and 1/4" soaker hose (.140 ID to .170 ID)
- Material: Acetal
About
DIG’s 1/4” Barbed Drip Fittings are available in a range of configurations for use with 1/4” micro tubing (also known as distribution tubing), 1/4″ drip line and 1/4″ soaker hose. They provide a low cost and simple method for the installation of the different tubing. The main purpose of the fittings is to allow the extension of drip emitters or 1/4” drip line from the drip tubing into the plant areas. They use a sharp barb over which the end of the tubing is pushed for a very tight fit.
Barbed fittings Installation

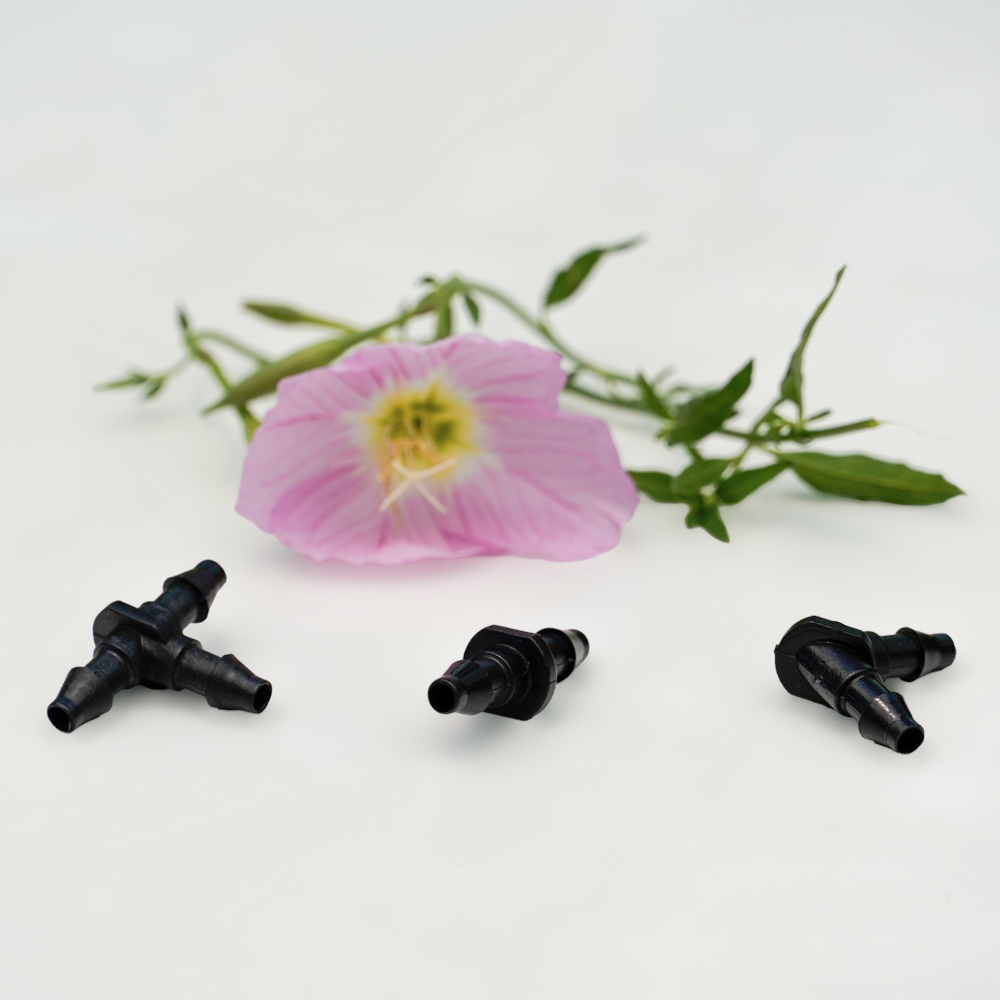

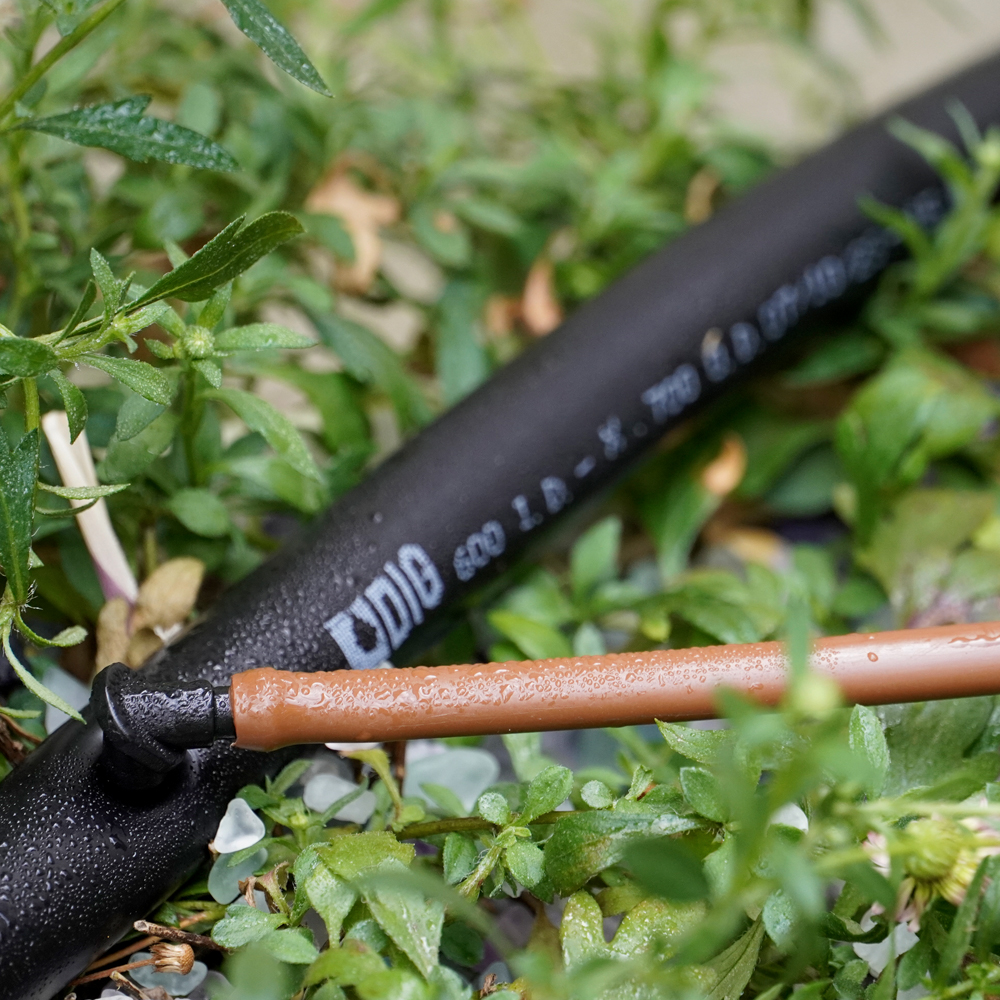

To connect the barbed fittings, force the tubing over the barb of the connector, tee or elbow. To connect 1/4” micro tubing into the 1/2” drip tubing, punch a hole into the 1/2” drip tubing, snap the barbed fitting into the hole and push the micro tubing over the other side of the barb. The 1/4″ fittings are available in a barbed connector, tee or elbow to meet the varying requirements in the installation and layout of the micro tubing and 1/4″ drip line.
