EXL Series V2Duo Foggers

Dual Fogger Head Assembly for Superior Cooling and Heat Stress Mitigation in Orchards, Vineyards and nurseries application.

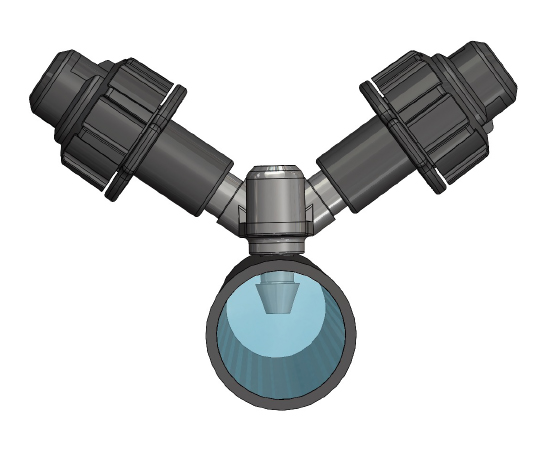

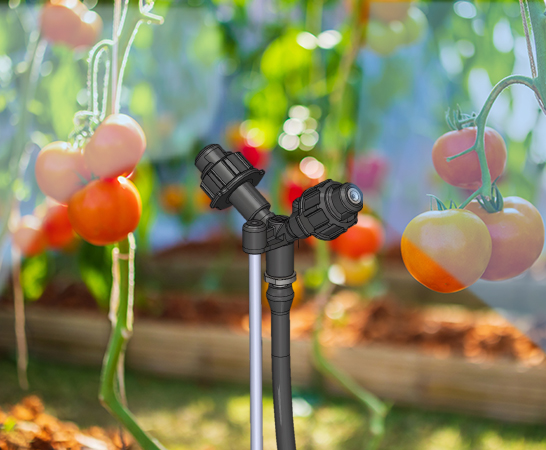

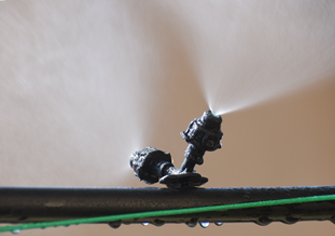

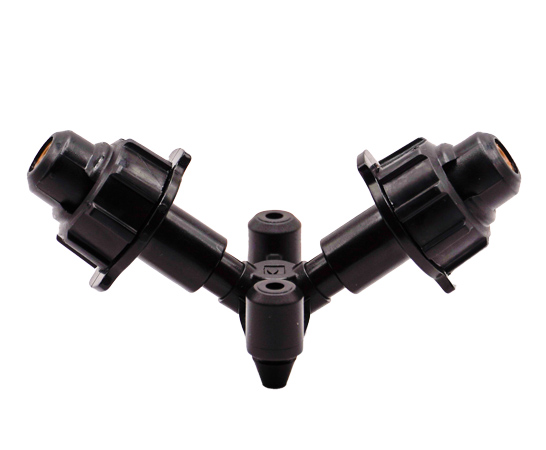

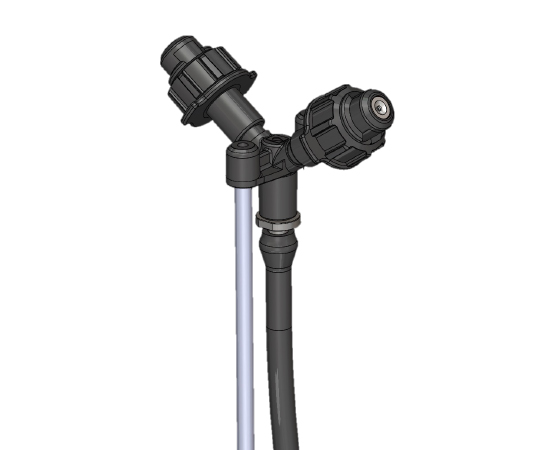

The DIG EXL Series V2Duo is an innovative dual fogger head with inlet barb or press fit assembly specifically engineered for effectively cooling trees, vines, and crops that are sensitive to high temperature during periods of intense and prolonged heat. Designed for above-canopy positioning, the V2Duo generates a dual stream of fine micro-sized droplets (50-100 μm) foggers that rapidly evaporate and raise the sounding humidity.. This process significantly lowers the surrounding air temperature and cools foliage, buds, and fruit, providing crucial protection against heat stress. Operating within a pressure range of 35 to 80 PSI (2.4 to 5.5 bars), the V2Duo features an enhanced design for optimal canopy coverage, user convenience with easy maintenance, and a reliable press-fit compression mount.

Features

• Optimal Cooling & Humidification: Creates ideal conditions by reducing temperature with higher humidity.

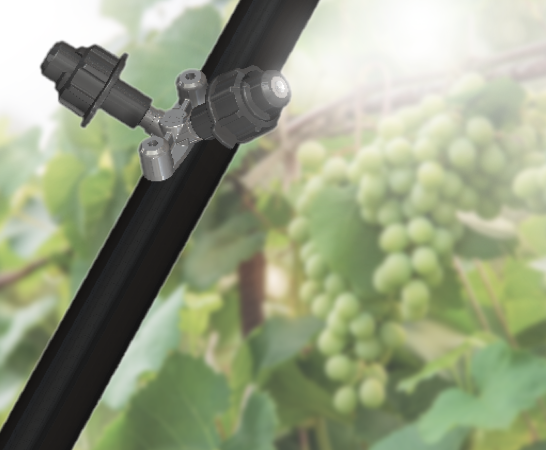

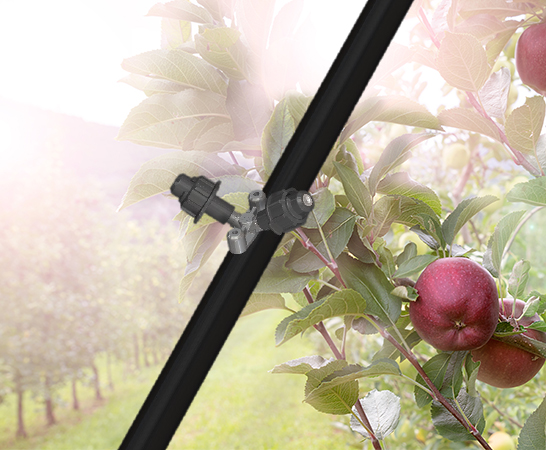

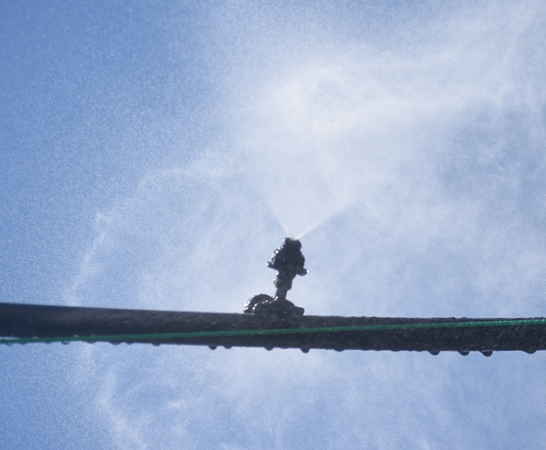

• Blanket Coverage: Installed in an upright position and above the tree canopies.
• Uniform Operation: Operates efficiently within a normal pressure range of 35 to 80 PSI with a nominal pressure at 50 PSI, ensuring consistent performance.
• Ideal Droplet Size: Produces micro-sized droplets of 50 to 100 microns for rapid evaporation.
• Vortex Technology: Incorporates a vortex mechanism for efficient atomization of water into micro-droplets.
• Versatile Nozzles: Available with four flow rates, color-coded interchangeable nozzles for customized application.
• Anti-Leak Protection: Prevents dripping at cycle start and at the end, safeguarding sensitive plants.
• Reduced Maintenance & Costs: Lower operating pressure minimizes wear, leading to less maintenance and lower overall operational expenses.
• Durable Construction: Manufactured from high-quality, UV-protected plastics.
